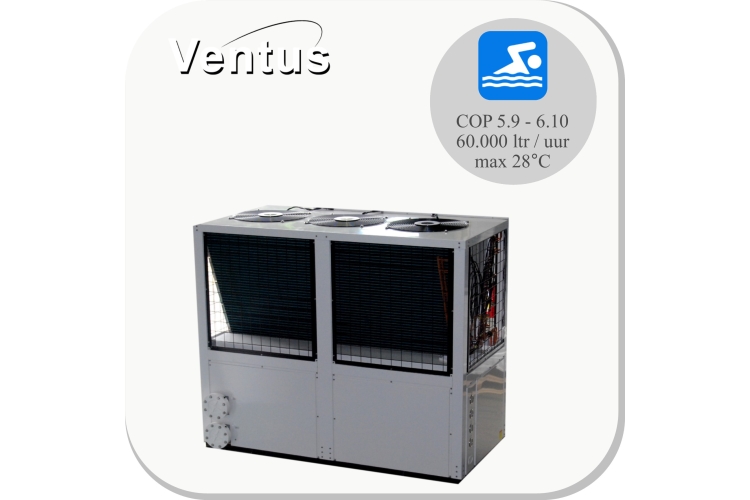

200.0 kW commercial swimming pool heat pump
Ventus PRO 200.0 kW commercial swimming pool heat pump for energy-efficient pool water heating.
200.0 kW commercial swimming pool heat pump
Ventus PRO 200.0 kW commercial swimming pool heat pump for energy-efficient pool water heating. 304 301 1004Ventus PRO 200.0 kW commercial swimming pool heat pump for energy-efficient pool water heating.
- Ventus™ Brand:
- Zwembad warmtepompen Category:
- Stock:
Buy this product?
Do you want to order this product? Please create an account.
Cost overview
-
€ 29.117,15Article
€
Shipping costs
€
Total incl. shipping costs 200.0 kW commercial swimming pool heat pump
Ventus PRO 200.0 kW commercial swimming pool heat pump for energy-efficient pool water heating.
200.0 kW commercial swimming pool heat pump
This Ventus PRO pool heat pump is suitable for public pools, hotels, wellness centres and professional installations where stable pool water temperature and powerful heating are important.
Key features
- 200.0 kW heating capacity for commercial swimming pool heating.
- Energy-efficient heat pump technology for pool water heating.
- Suitable for installers, pool builders and HVAC projects.
- Technical specifications under Specifications are taken from the product image.
Specifications
| Technical specifications - Ventus PRO 500S-V commercial swimming pool heat pump | ||
| Model: | 500S-V | |
| Heating capacity | kW | 200.0 |
| Heating capacity | Btu/h | 680000 |
| Power input | kW | 32.8 |
| Coefficient of performance | COP | 6.10 |
| Operating current | A | 58.6 |
| * Heating range | kW | 160.0 |
| * Heating range | Btu/h | 544000 |
| * Power input | kW | 30.8 |
| * Coefficient of performance | COP | 5.19 |
| * Operating current | A | 55.1 |
| ** Heating range | kW | 125.0 |
| ** Heating range | Btu/h | 425000 |
| ** Power input | kW | 29.5 |
| ** Coefficient of performance | COP | 4.24 |
| ** Operating current | A | 52.7 |
| Power supply | V | 380V/3N~50Hz |
| Compressor brand and quantity | COPELAND | 4 |
| Compressor type | Scroll | |
| Fan quantity and power | 2 | 2000W (2) |
| Fan speed and direction | RPM 920 | Vertical |
| Sound level | dB(A) | 67 |
| Water connection | mm | 110 |
| Water output capacity per hour | m³/hour | 60 |
| Water pressure drop (max) | kPa | 21 |
| Net dimensions | L/W/H | 2180 x 1080 x 2060 |
| Performance and test condition: | ||
| 1: ambient temperature DB 24°C / WB 19°C, water temperature in/out 26°C / 28°C | ||
| 2: ambient temperature DB 15°C / WB 12°C, water temperature in/out 26°C / 28°C | ||
| 3: ambient temperature DB 7°C / WB 6°C, water temperature in/out 26°C / 28°C | ||
