With an LTV water fan coil, the supply temperature to radiators, underfloor heating or wall heating is normally up to 55°C. Compared With conventional central heating, this lower water temperature helps reduce energy consumption while keeping the room comfortable. It also supports a healthier indoor climate.

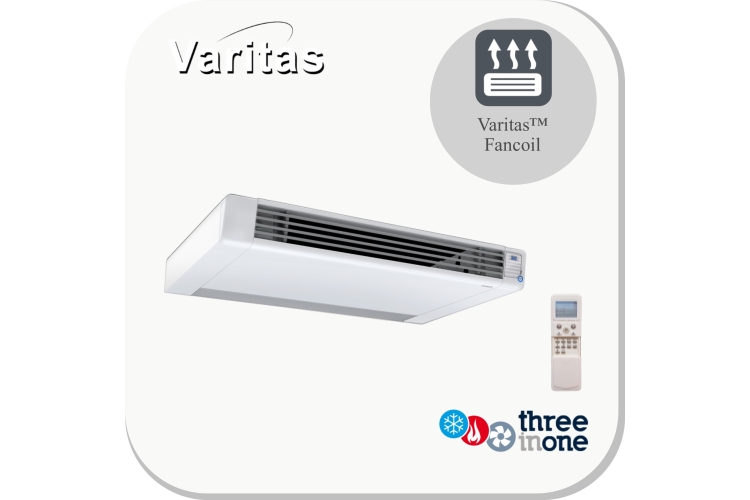

Low H2O 040/A3900 LTV water fan coil
Ceiling model
Heating capacity *3900W
Cooling capacity 1800W
Flow rate 0,31 m³/h
Water pressure drop 16 kPa
Airflow capacity 320 m³/h
Sound level high 44 dB/(A)
Sound level low 27 dB(A)
Mains voltage 220-240V/1/Ph/50Hz
Power consumption 18W
Water connection 3/4"
Dimensions: length 900mm * width 130mm * height 670mm

Optional:
Insulated connection hoses
Watts 2-way / 3-way valve
Actuator
