GreenTherm 060S/8.00~22.00 kW-KA21762
GreenTherm 060S/8.00~22.00 kW-KA21762
302 301 1011Ventus GreenTherm 060S high-temperature air-to-water heat pump with inverter technology, heating range 8.00 - 22.00 kW and maximum water temperature of 75°C. Suitable for all-electric renovation projects, radiator systems and professional HVAC applications.
- Hoge Temperatuur series Brand:
- Modulerende warmtepompen Category:
- Stock:
Cost overview
-
€ 6.950,00Article
GreenTherm 060S/8.00~22.00 kW-KA21762

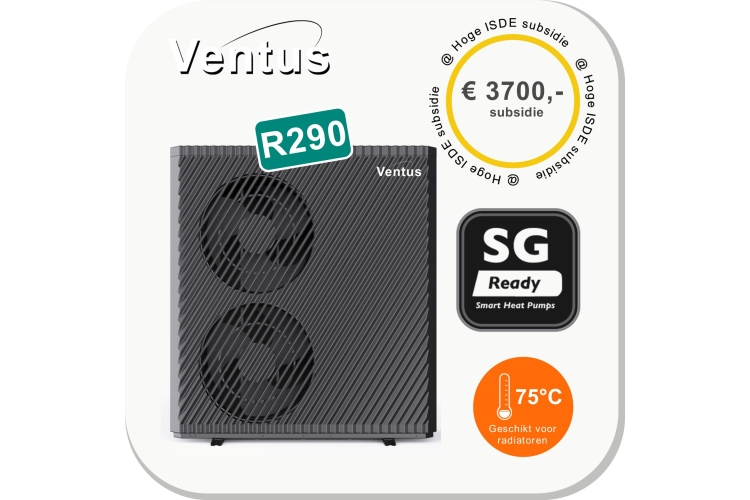

Ventus GreenTherm 060S modulating air-to-water heat pump 8.00 - 22.00 kW
The Ventus GreenTherm 060S is a high-temperature modulating inverter air-to-water heat pump for efficient heating and cooling in homes, heating systems and light commercial HVAC applications. With a heating capacity range of 8.00 - 22.00 kW, the heat pump adjusts its output to the actual system demand.
Unlike a traditional start/stop unit, a modulating heat pump operates between minimum and maximum output. This helps keep the water temperature stable, improves comfort and supports efficient seasonal operation. The high water temperature makes this model especially suitable for renovation projects where existing pipework and radiators are retained.
Suitable for installers and HVAC applications
This heat pump is suitable for all-electric renovation, radiator systems and professional HVAC projects where reliable performance and energy efficiency are important. The unit can be combined with Nexus stainless steel buffer tanks and domestic hot water cylinders for complete heat pump installations.
Key benefits
- Modulating air-to-water heat pump with inverter technology
- Heating capacity range: 8.00 - 22.00 kW
- Cooling capacity range: 4.20 - 15.00 kW
- Energy label A+++ and SCOP 3.84
- Maximum water temperature: 75°C
- Suitable for heating, cooling and HVAC applications
Specifications
| Technical specifications - Ventus GreenTherm 060S air-to-water heat pump | |
| General | |
| Product type | Modulating air-to-water heat pump / inverter heat pump |
| Model | PASRW060S-BP-PS-D / GreenTherm 060S |
| Article number | 302 301 1011 |
| Power supply | 380-415 V / 3N / 50-60 Hz |
| Moisture resistance | IPX4 |
| Electrical shock protection class | Class I |
| Performance | |
| Heating condition | Ambient temp. (DB/WB): 7/6°C; water temp. (in/out): 30/35°C |
| Heating capacity range | 8.00 - 22.00 kW |
| Power input heating | 1.60 - 6.90 kW |
| Current input heating | 2.8 - 12.2 A |
| Cooling condition | Ambient temp. (DB/WB): 35/24°C; water temp. (in/out): 12/7°C |
| Cooling capacity range | 4.20 - 15.00 kW |
| Power input cooling | 1.80 - 7.30 kW |
| Current input cooling | 3.2 - 12.9 A |
| Domestic hot water condition | Ambient temp. (DB/WB): 20/15°C; water temp. (in/out): 15/55°C |
| Domestic hot water capacity range | 10.00 - 27.00 kW |
| Power input domestic hot water | 1.90 - 7.10 kW |
| Current input domestic hot water | 3.4 - 12.5 A |
| Max. power input | 9.0 kW |
| Max. current input | 15.8 A |
| Water flow rate | 2.9 m³/h |
| Electrical and refrigerant | |
| Refrigerant / charge | R290 / 1.30 kg |
| CO2 equivalent | 0.0039 ton |
| Operating pressure low side | 0.8 MPa |
| Operating pressure high side | 3.0 MPa |
| Dimensions and installation | |
| Sound pressure level (1 m) | 46 dB(A) |
| Sound power level (EN12102) | 62 dB |
| Net weight | 202 kg |
| Unit dimensions (L x W x H) | 1250 x 502 x 1329 mm |
| Shipping dimensions (L x W x H) | 1380 x 570 x 1480 mm |
| Compressor brand | HIGHLY |
| Circulation pump | Yes |
| Operating ambient temperature | -25°C to 43°C |
| Fan quantity | 2 |
| Fan motor type | DC motor |
| Fan motor power input (min.-max.) | 60 - 160 W |
| Fan speed | 300 - 750 RPM |
| Water connection | 1" |
| Internal water pressure drop at rated flow | 45 kPa |
| Circulation pump head | 6.9 m |
| Cabinet type | Galvanized sheet + ASA |
