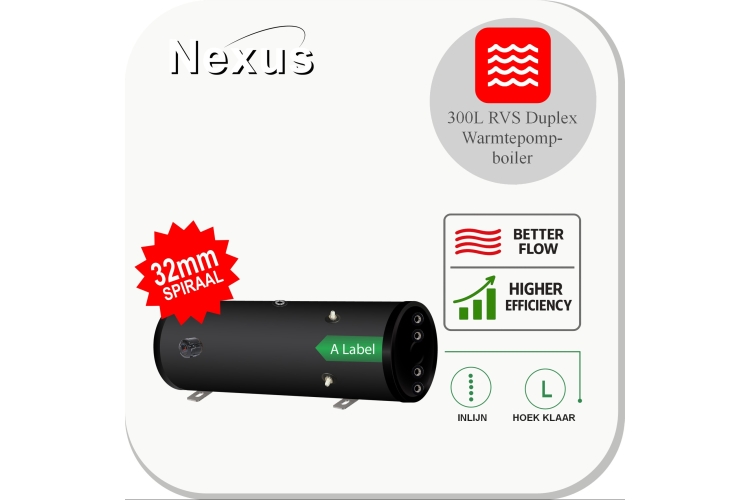

Nexus Stainless Steel DHW Cylinder InLine 300H-XL-LE1 Black 32 mm
Nexus Stainless Steel DHW Cylinder InLine 300H-XL-LE1 Black 32 mm
236 200 1007236 200 1007 Horizontal 300 L stainless steel DHW cylinder with a larger XL 316L heat exchanger for efficient hot water production.
- Nexus™ InLine series Brand:
- RVS Inline Series Category:
- Stock:
Buy this product?
Do you want to order this product? Please create an account.
Cost overview
-
€ 1.595,60Article
€
Shipping costs
€
Total incl. shipping costs Horizontal 300 L DHW Cylinder with Extra Storage Volume
The 300H-XL-LE1 provides a larger horizontal solution for projects with greater domestic hot water demand. The low vessel layout can save space where room height or service access is critical.
Larger XL Heat Exchanger for Heat Pumps
The 30 m AISI 316L heat exchanger supports efficient heat transfer and stable hot water performance. This makes the model suitable when both storage volume and heat pump efficiency are important.
InLine Connections for Organized Installation
The connections are grouped on one side, helping pipework stay clear and allowing the installation to be finished professionally.
Specifications
Technical specifications - 300H-XL-LE1 32mm
| General | |
| Product type | Stainless steel DHW cylinder / heat pump water heater |
| Rated volume | 300 L |
| Actual volume | 284 L |
| Application | Heat pump / domestic hot water |
| Installation type | Horizontal installation |
| Connection layout | All connections in one line |
| Number of heat exchangers | 1 |
| Width [mm] | 1568 mm |
| Outer diameter [mm] | 600 mm |
| Inner diameter [mm] | 500 mm |
| Insulation | CFC-free rigid polyurethane foam |
| Insulation thickness [mm] | 50 |
| Outer shell | Frosted metal, RAL 7030 finish |
| Weight | 65 kg |
| Warranty | 5 years |
| Tank | |
| Tank material | Stainless steel Duplex 2205 |
| Max. operating / test pressure | 6/10 bar |
| Max. tank temperature | 95 °C |
| Heat exchanger | |
| Type of heat exchanger | XL corrugated heat pump heat exchanger |
| Heat exchanger design | Corrugated tubular spiral |
| Exchanger diameter [mm] | 32 mm |
| Heat exchanger material | Stainless steel AISI 316L |
| Heat exchanger diameter [mm] | 32 |
| Heat exchanger length [m] | 30 |
| Exchanger surface area [m²] | 3.8 |
| Exchanger volume [L] | 16 |
| Max. heat exchanger pressure [bar] | 10 |
| Max. operating temperature heat exchanger [°C] | 95 |
| Connections | ||||
| H | DN 14 | G 3/4" | P&T safety valve | 500 mm |
| M | DN 14 | G 3/4" | P&T safety valve | 771 mm |
| K | DN 9 | G 1" | Connection (hot water outlet) | 460 mm |
| F | DN 3 | G 1" | Ø 32 mm AISI 316L heat exchanger 30 m, inlet / outlet | 360 mm |
| E | DN 4 | G 1" | Ø 32 mm AISI 316L heat exchanger 30 m, inlet / outlet | 240 mm |
| G | DN 8 | G 1" | Connection (cold water inlet) | 140 mm |
| I | DN 6 | G 1½" | Electric heating element | 328 mm |
| L | DN 5 | G 3/4" | Sensor pocket (1) | 1242 mm |
| L | DN 7 | G 3/4" | Sensor pocket (2) | 1242 mm |
| P | DN 16 | G 1/2" | Drain port | 115 mm |
| Safety requirements |
| The storage vessel must always be protected against overpressure. We recommend installing a safety valve with inlet combination, a Nexus sanitary expansion vessel and a Nexus expansion vessel for heating systems. The required expansion capacity must be calculated according to the total system volume and operating conditions. |
