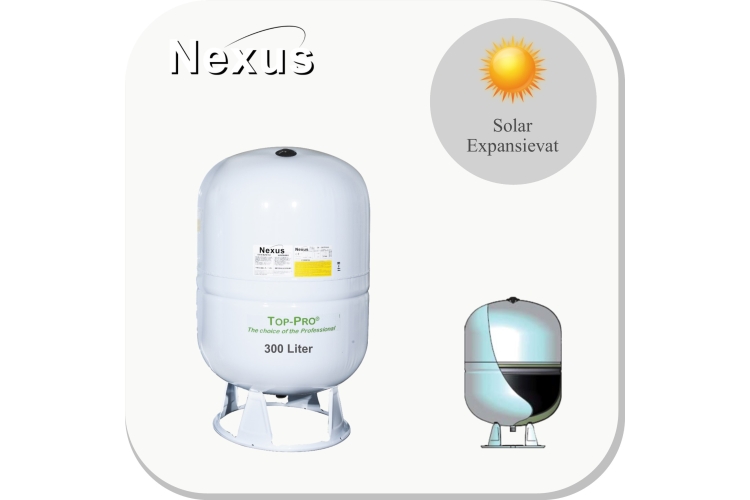

Nexus 300L solar expansion vessel model DSV-300
Nexus 300L solar expansion vessel model DSV-300
255 700 1009Nexus 300L solar expansion vessel model DSV-300 for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
- Nexus™ Brand:
- Nexus Solar expansievaten Category:
- Stock:
Buy this product?
Do you want to order this product? Please create an account.
Cost overview
-
€ 605,11Article
€
Shipping costs
€
Total incl. shipping costs Nexus 300L solar expansion vessel model DSV-300
Nexus 300L solar expansion vessel model DSV-300
Nexus 300L solar expansion vessel model DSV-300 for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
Nexus solar expansion vessel
This solar expansion vessel is designed for closed solar thermal installations. It absorbs the expansion of the solar fluid and supports safe operation when temperatures in the collector field fluctuate.
Key benefits
- For closed solar thermal systems
- Suitable for glycol-based solar medium
- Designed for high system temperatures
- Reliable membrane construction
Specifications
| Technical specifications — Nexus 300L solar expansion vessel model DSV-300 | |
| General | |
| Product Type | Nexus solar expansion vessel |
| Article Number | 255 700 1009 |
| Model | DSV-300 |
| Volume | 300 L |
| Diameter | Ø 650 mm |
| Height | 1240 mm |
| Connection | G 1" |
| Max. Operating Pressure | 10 bar |
| Membrane | SBR membraan |
| Pre-Charge Pressure | 3 bar |
| Max. System Temperature | -10°C - 110°C |
| Solar Medium | suitable up to 70% |
| Internal Protection | Top Pro coating |
| Standards | Pressure Equipment Directive 97/23/EC, DIN EN 13831 |
| Application Standard | DIN EN 12976, EN 12977 / DIN 4757 |
| Warranty | 2 years |
