RVS Buffer tank PWT-1000
RVS Buffer tank PWT-1000
203 200 1010Nexus PWT 1000 litre Duplex 2205 buffer tank with extended connection options with hygienic Duplex 2205 inner tank, anti-cycling buffer function, thermal storage function and electric-boiler-ready design with heating element.
- Nexus™ Brand:
- RVS Duplex Buffervaten Category:
- Stock:
Cost overview
-
€ 3.756,26Article
RVS Buffer tank PWT-1000

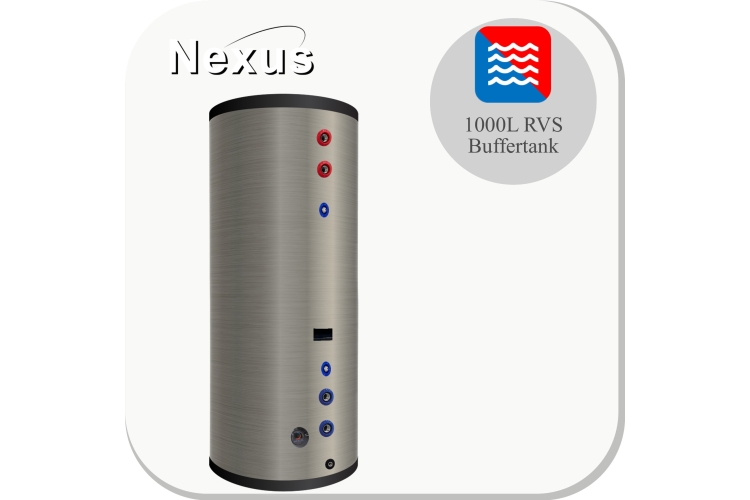

RVS Buffer tank PWT-1000: Stainless Steel Buffer Tank for Heat Pumps
The RVS Buffer tank PWT-1000 is a stainless steel buffer tank for heat pump systems, central heating installations and professional HVAC applications. It increases system volume, helps reduce cycling and supports more stable hydraulic operation.
Stainless Steel Construction and Reliable Thermal Storage
The tank is manufactured from Duplex 2205 stainless steel and designed for long-term use in technical installations. The combination of stainless steel, PU insulation and practical connection options makes this model a durable buffer solution for installers.
Hydraulic Stability for Heating Systems
By adding buffer volume, the heating system can operate more smoothly. This supports stable flow, less frequent start-stop operation of the heat source and reliable long-term system performance.
Key Features
- Manufactured from Duplex 2205 stainless steel
- High-quality PU insulation to help reduce heat loss
- Designed for installers, resellers and HVAC professionals
- Increases system volume and improves hydraulic stability
- Suitable for heat pump and heating systems
Specifications
Technical data - PWT-1000
| General | |
| Product type | Duplex 2205 stainless steel buffer tank / electric boiler-ready vessel |
| Rated volume | 1000 L |
| Application | Heat pump and heating systems / anti-cycling buffer, thermal storage and optional electric boiler use |
| Installation type | Vertical floor-standing |
| Connection layout | 8 connections for flexible buffer and storage use |
| Height [mm] | 2320 |
| Tilt dimension [mm] | 2488 |
| Outer diameter [mm] | 900 |
| Inner diameter [mm] | 800 |
| Insulation | CFC-free rigid PU foam |
| Insulation thickness [mm] | 50 |
| Outer casing | Frosted stainless steel, RVS grey |
| Weight [kg] | 130 |
| Warranty | 5 years |
| Tank | |
| Tank material | Stainless steel Duplex 2205 |
| Max. tank pressure [bar] | 6 |
| Max. tank temperature [deg C] | 95 |
| Connections | ||||
| H | Height | 2320 mm | ||
| ØD | Outer diameter | 900 mm | ||
| Ød | Inner diameter | 800 mm | ||
| H | DN 14 | G 1" | P&T safety valve | 2320 mm |
| I | DN 3 | G 1 1/4" | Connection (inlet / outlet) | 1995 mm |
| B | DN 8 | G 1 1/4" | Connection (inlet / outlet) | 1995 mm |
| C | DN 4 | G 1 1/4" | Connection (inlet / outlet) | 1730 mm |
| J | DN 9 | G 1 1/4" | Connection (inlet / outlet) | 1730 mm |
| F | DN 5 | G 1/2" | Sensor pocket 1 (12.7 mm) | 1550 mm |
| D | DN 7 | G 1/2" | Sensor pocket 2 (12.7 mm) | 600 mm |
| L | DN 12 | G 1 1/4" | Connection (inlet / outlet) | 500 mm |
| K | DN 10 | G 1 1/4" | Connection (inlet / outlet) | 500 mm |
| A | DN 6 | G 1 1/2" | Electric heating element | 300 mm |
| A | DN 13 | G 1 1/4" | Connection (inlet / outlet) | 300 mm |
| E | DN 11 | G 1 1/4" | Connection (inlet / outlet) | 300 mm |
| G | DN 2 | G 1/2" | Drain tap | 80 mm |
| Safety requirements |
| The storage vessel must be protected against overpressure at all times. We recommend installing the following safety accessories: * Safety valve and inlet combination * Nexus sanitary expansion vessel model DS-DSV * Nexus expansion vessel model Nexus ERCE The required expansion vessel capacity must be calculated according to the total system volume and operating conditions. |
