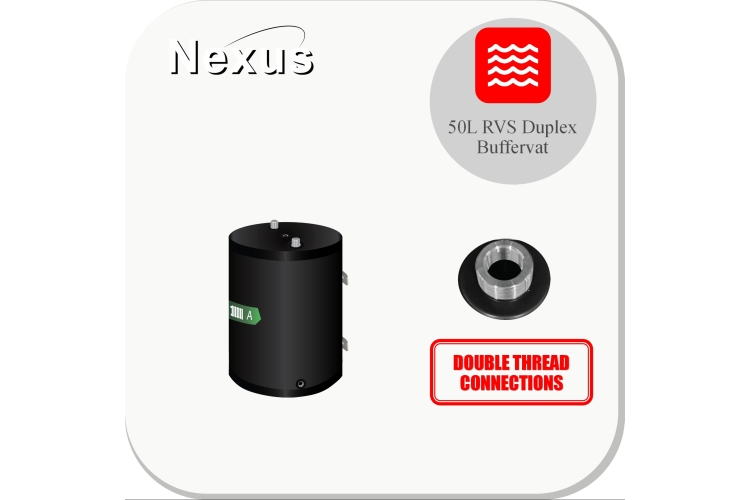

Stainless Steel Buffer Tank BT-50 WM-B-C2 Black
Stainless Steel Buffer Tank BT-50 WM-B-C2 Black
229 200 1001The BT-50 WM-B-C2 Black is a compact 50 L stainless steel buffer tank for heat pump and heating systems.
- Nexus™ Black-series Brand:
- RVS Black Series Category:
- Stock:
Cost overview
-
€ 386,46Article
Stainless Steel Buffer Tank BT-50 WM-B-C2 Black
The BT-50 WM-B-C2 Black is a compact 50 L stainless steel buffer tank for heat pump and heating systems. It increases system volume, improves hydraulic stability and helps reduce unnecessary cycling of the heat source in compact installations.
Compact Buffer Volume for Stable Heat Pump Operation
The Nexus BT-50 WM-B-C2 Black increases system volume and helps improve hydraulic stability in heat pump and central heating installations. This supports smoother heat source operation and helps reduce unnecessary cycling.
Stainless Steel Buffer Tank for Compact Installations
This buffer tank is designed for installers who need a compact and durable storage solution with top connections, double internal and external thread connections, and a clean professional finish.
Duplex 2205 Tank and Black Frosted-Metal Outer Casing
The inner tank is made from Duplex 2205 stainless steel for high corrosion resistance and long service life. The black frosted-metal outer casing gives the buffer tank a modern appearance in technical rooms and HVAC installations.
Key Features
- Compact 50 L stainless steel buffer tank
- Suitable for heat pump and heating systems
- Increases system volume and hydraulic stability
- Helps reduce unnecessary heat pump or boiler cycling
- Duplex 2205 stainless steel inner tank
- Top connections for compact installation
- Double internal and external thread connections
- Black frosted-metal outer casing
Downloads
Specifications
Technical data — Stainless steel buffer tank BT-50 WM-B-C2 Black
| General | |
| Product type | Stainless steel buffer tank |
| Rated volume | 50 L |
| Application | Heating/cooling buffer storage |
| Installation type | Wall-mounted / compact |
| Connection layout | Top connection layout |
| Number of exchangers | 0 |
| Height [mm] | 620 |
| Tilt dimension [mm] | 778 |
| Outer diameter [mm] | 470 |
| Inner diameter [mm] | 370 |
| Insulation | CFC-free rigid PU foam |
| Insulation thickness [mm] | 50 |
| Outer casing | Frosted metal, Black |
| Weight [kg] | 17 |
| Warranty | 3 years |
| Tank | |
| Tank material | Stainless steel Duplex 2205 |
| Max. tank pressure [bar] | 10 |
| Max. tank temperature [°C] | 95 |
| Connections | ||||
| H | DN 2 | G 1½" | Hot water outlet | 620 |
| H | DN 4 | G 1½" | Cold water inlet | 620 |
| H | DN 3 | G 1/2" | P&T safety valve | 620 |
| P | DN 1 | G 1/2" | Drain tap | 33 |
| Safety requirements |
| The storage vessel must be protected against overpressure at all times. We recommend installing the following safety accessories: • Safety valve and inlet combination • Nexus sanitary expansion vessel • Nexus expansion vessel for heating systems The required expansion vessel capacity must be calculated according to the total system volume and operating conditions. |
