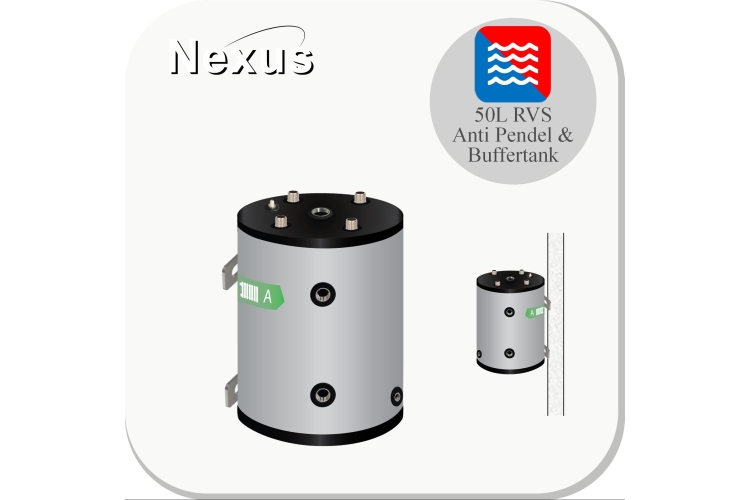

RVS Buffertank BT-50/WM-C8

Nexus BT 50 litre buffer tank with extended connection options made from AISI 304 stainless steel, with anti-cycling buffer function, PU insulation and light grey frosted metal outer casing for heat pump and heating systems.


  • Nexus™ B-series Brand:
  • RVS 304 / BT-Serie Grijs Category:
  • Stock:
Buy this product?
Do you want to order this product? Please create an account.

Cost overview
  • € 350,49
    Article

RVS Buffertank BT-50/WM-C8

RVS Buffertank BT-50/WM-C8: Stainless Steel Buffer Tank for Heat Pumps

The RVS Buffertank BT-50/WM-C8 is a stainless steel buffer tank for heat pump systems, central heating installations and professional HVAC applications. It increases system volume, helps reduce cycling and supports more stable hydraulic operation.

Stainless Steel Construction and Reliable Thermal Storage

The tank is manufactured from stainless steel AISI 304 and designed for long-term use in technical installations. The combination of stainless steel, PU insulation and practical connection options makes this model a durable buffer solution for installers.

Energy Efficiency Class A and PU Insulation

With Energy Efficiency Class A, the high-quality PU insulation helps reduce heat loss, keeps stored heat at temperature for longer and supports lower energy consumption in heat pump and heating systems. This makes the Nexus stainless steel buffer range an efficient choice for reliable thermal storage, buffer volume and long-term energy savings.

Hydraulic Stability for Heating Systems

By adding buffer volume, the heating system can operate more smoothly. This supports stable flow, less frequent start-stop operation of the heat source and reliable long-term system performance.

Key Features

  • Energy Efficiency Class A
  • Manufactured from stainless steel AISI 304
  • High-quality PU insulation to help reduce heat loss
  • Designed for installers, resellers and HVAC professionals
  • Increases system volume and improves hydraulic stability
  • Suitable for heat pump and heating systems

Specifications

Technical data — BT-50 WM-C8

General
Product typeStainless steel buffer tank
Rated volume50 L
ApplicationHeat pump and heating systems / anti-cycling buffer and thermal storage
Installation typeWall-mounted / floor-standing
Connection layout8 connections with top heat pump and heating circuit connections
Height [mm]620
Tilt dimension [mm]778
Outer diameter [mm]470
Inner diameter [mm]370
InsulationCFC-free rigid PU foam
Insulation thickness [mm]50
Outer casingFrosted metal, light grey
Weight [kg]17
Warranty3 years
Tank
Tank materialStainless steel AISI 304
Max. tank pressure [bar]6
Max. tank temperature [°C]95
Connections
HHeight620 mm
ØDOuter diameter470 mm
ØdInner diameter370 mm
HDN 14G 1/2"P&T safety valve620 mm
HDN 6G 1½"Electric heating element620 mm
HDN 5G 1/2"Sensor pocket 1 (12.7 mm)620 mm
HDN 24BSP 3/4"Heat pump supply (male thread)620 mm
HDN 28BSP 3/4"Heating supply (male thread)620 mm
HDN 23BSP 3/4"Heat pump return (male thread)620 mm
HDN 29BSP 3/4"Heating return (male thread)620 mm
ADN 4G 1"Connection (inlet / outlet)195 mm
BDN 3G 1"Connection (inlet / outlet)441 mm
EDN 8G 1"Connection (inlet / outlet)195 mm
FDN 9G 1"Connection (inlet / outlet)441 mm
GDN 2G 1/2"Drain tap33 mm
Safety requirements
The storage vessel must be protected against overpressure at all times.
We recommend installing the following safety accessories:
* Safety valve and inlet combination
* Nexus sanitary expansion vessel model DS-DSV
* Nexus expansion vessel model Nexus ERCE
The required expansion vessel capacity must be calculated according to the total system volume and operating conditions.
