RVS Buffertank PWT-300
RVS Buffertank PWT-300
203 200 1004Nexus PWT 300 litre Duplex 2205 stainless steel buffer tank with hygienic Duplex 2205 inner tank, anti-cycling buffer function, thermal storage function and electric-boiler-ready design with heating element.
- Nexus™ Brand:
- RVS Duplex Buffervaten Category:
- Stock:
Cost overview
-
€ 1.009,71Article
RVS Buffertank PWT-300

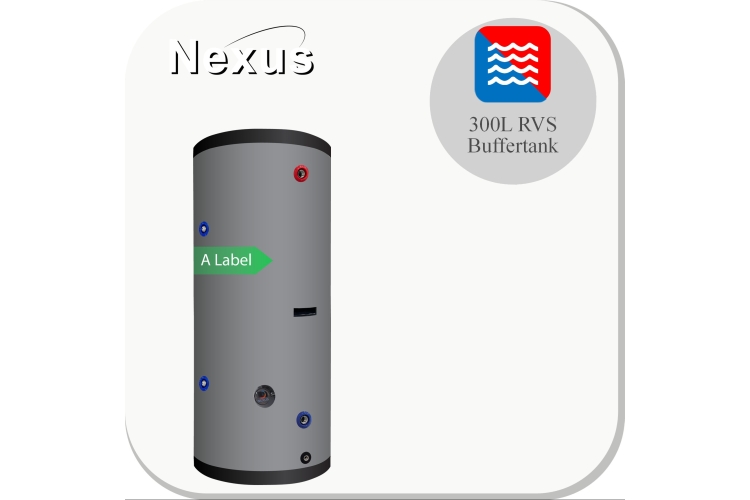

RVS Buffertank PWT-300: Stainless Steel Buffer Tank for Heat Pumps
The RVS Buffertank PWT-300 is a stainless steel buffer tank for heat pump systems, central heating installations and professional HVAC applications. It increases system volume, helps reduce cycling and supports more stable hydraulic operation.
Stainless Steel Construction and Reliable Thermal Storage
The tank is manufactured from Duplex 2205 stainless steel and designed for long-term use in technical installations. The combination of stainless steel, PU insulation and practical connection options makes this model a durable buffer solution for installers.
Energy Efficiency Class A and PU Insulation
With Energy Efficiency Class A, the high-quality PU insulation helps reduce heat loss, keeps stored heat at temperature for longer and supports lower energy consumption in heat pump and heating systems. This makes the Nexus stainless steel buffer range an efficient choice for reliable thermal storage, buffer volume and long-term energy savings.
Hydraulic Stability for Heating Systems
By adding buffer volume, the heating system can operate more smoothly. This supports stable flow, less frequent start-stop operation of the heat source and reliable long-term system performance.
Key Features
- Energy Efficiency Class A
- Manufactured from Duplex 2205 stainless steel
- High-quality PU insulation to help reduce heat loss
- Designed for installers, resellers and HVAC professionals
- Increases system volume and improves hydraulic stability
- Suitable for heat pump and heating systems
Specifications
Technical data - PWT-300
| General | |
| Product type | Duplex 2205 stainless steel buffer tank / electric boiler-ready vessel |
| Rated volume | 300 L |
| Application | Heat pump and heating systems / anti-cycling buffer, thermal storage and optional electric boiler use |
| Installation type | Vertical floor-standing |
| Connection layout | 4 side connections |
| Height [mm] | 1550 |
| Tilt dimension [mm] | 1662 |
| Outer diameter [mm] | 600 |
| Inner diameter [mm] | 500 |
| Insulation | CFC-free rigid PU foam |
| Insulation thickness [mm] | 50 |
| Outer casing | Frosted metal, light grey |
| Weight [kg] | 60 |
| Warranty | 5 years |
| Tank | |
| Tank material | Stainless steel Duplex 2205 |
| Max. tank pressure [bar] | 6 |
| Max. tank temperature [deg C] | 95 |
| Connections | ||||
| H | Height | 1550 mm | ||
| ØD | Outer diameter | 600 mm | ||
| Ød | Inner diameter | 500 mm | ||
| H | DN 14 | G 3/4" | P&T safety valve | 1550 mm |
| B | DN 3 | G 1 1/4" | Connection (inlet / outlet) | 1190 mm |
| F | DN 9 | G 1 1/4" | Connection (inlet / outlet) | 1190 mm |
| C | DN 5 | G 1/2" | Sensor pocket 1 (12.7 mm) | 1040 mm |
| D | DN 7 | G 1/2" | Sensor pocket 2 (12.7 mm) | 550 mm |
| L | DN 6 | G 1 1/2" | Connection for electric heating element | 400 mm |
| E | DN 8 | G 1 1/4" | Connection (inlet / outlet) | 250 mm |
| A | DN 4 | G 1 1/4" | Connection (inlet / outlet) | 250 mm |
| G | DN 2 | G 1/2" | Drain tap | 33 mm |
| Safety requirements |
| The storage vessel must be protected against overpressure at all times. We recommend installing the following safety accessories: * Safety valve and inlet combination * Nexus sanitary expansion vessel model DS-DSV * Nexus expansion vessel model Nexus ERCE The required expansion vessel capacity must be calculated according to the total system volume and operating conditions. |
