RVS Solar boiler PAWT-200L/LE1
RVS Solar boiler PAWT-200L/LE1
213 200 1001The Nexus PAWT-200L LE1 is a Duplex 2205 stainless steel solar thermal water heater with one AISI 316L corrugated solar heat exchanger, PU insulation and a frosted-metal outer casing for domestic hot water systems.
- Nexus™ Brand:
- RVS Hygiëne-boilers (1) coil Category:
- Stock:
Cost overview
-
€ 865,47Article
RVS Solar boiler PAWT-200L/LE1

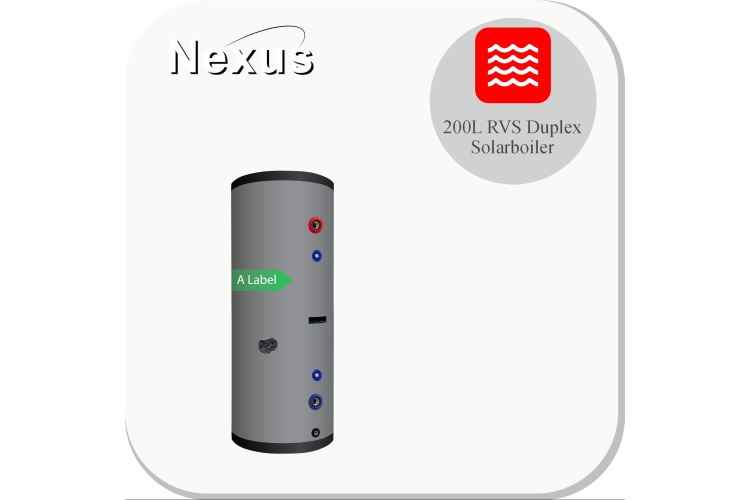

Nexus PAWT-200L LE1 Stainless Steel Solar Thermal Water Heater 200L
The Nexus PAWT-L LE1 is a stainless steel solar thermal water heater for domestic hot water production in professional solar thermal installations. The vessel is designed for installers who need a durable storage cylinder with one integrated corrugated solar heat exchanger.
The AISI 316L stainless steel solar coil transfers heat from the solar thermal circuit to the stored water. This makes the PAWT-L LE1 suitable for solar collectors, technical rooms and projects where reliable sanitary hot water storage is required.
The inner tank is manufactured from Duplex 2205 stainless steel, a premium material with high mechanical strength and excellent corrosion resistance. Models up to and including 300 litres are supplied with Energy Efficiency Class A, supported by high-quality PU insulation for low standby heat loss.
With sensor pockets, an electric heating element connection and a frosted-metal outer casing, the PAWT-L LE1 is practical to install, control and maintain in professional HVAC and sanitary hot water systems.
Key Features
- Duplex 2205 stainless steel inner tank
- One AISI 316L corrugated solar heat exchanger
- Designed for solar thermal domestic hot water systems
- PU insulation for reduced heat loss
- Frosted-metal outer casing
- Prepared for sensors and electric backup heating
Specifications
Technical data - PAWT-200L LE1 Solar
| General | |
| Product type | Stainless steel solar thermal water heater |
| Rated volume | 200 L |
| Application | Solar thermal / domestic hot water |
| Installation type | Vertical, floor-standing |
| Connection layout | Connections according to technical drawing |
| Number of heat exchangers | 1 |
| Height [mm] | 1325 |
| Tilt height [mm] | 1439 |
| Outer diameter [mm] | 560 |
| Inner diameter [mm] | 470 |
| Insulation | CFC-free rigid PU foam |
| Insulation thickness [mm] | 45 |
| Outer casing | Frosted metal, RAL 7030 |
| Weight [kg] | 45 |
| Warranty | 5 years |
| Tank | |
| Tank material | Stainless steel Duplex 2205 |
| Max. tank pressure [bar] | 6 |
| Max. tank temperature [°C] | 95 |
| Heat Exchanger | |
| Exchanger type | Solar corrugated coil heat exchanger |
| Exchanger design | Ø22 mm corrugated pipe coil |
| Exchanger material | AISI 316L stainless steel |
| Exchanger length [m] | 10 |
| Exchanger surface area [m²] | 1.0 |
| Max. exchanger pressure [bar] | 10 |
| Max. exchanger temperature [°C] | 95 |
| Connections | ||||
| H | Height | 1325 mm | ||
| ØD | Outer diameter | 560 mm | ||
| Ød | Inner diameter | 470 mm | ||
| H | DN 14 | G 3/4" | P&T safety valve | 1325 mm |
| F | DN 3 | G 1" | Ø22 mm solar heat exchanger inlet / outlet | 630 mm |
| E | DN 4 | G 1" | Ø22 mm solar heat exchanger outlet / inlet | 350 mm |
| C | DN 5 | G 1/2" | Sensor pocket 1 | 890 mm |
| L | DN 6 | G 1½" | Electric heating element | 630 mm |
| I | DN 7 | G 1/2" | Sensor pocket 2 | 450 mm |
| A | DN 8 | G 1" | Connection inlet / outlet | 250 mm |
| D | DN 9 | G 1" | Connection inlet / outlet | 1000 mm |
| G | DN 2 | G 1/2" | Drain tap | 33 mm |
| Safety notice |
| The storage vessel must be protected against overpressure at all times. We recommend installing the following safety accessories: • Safety valve and inlet combination • Nexus sanitary expansion vessel • Nexus expansion vessel for heating systems The required expansion vessel capacity must be calculated according to the total system volume and operating conditions. |
