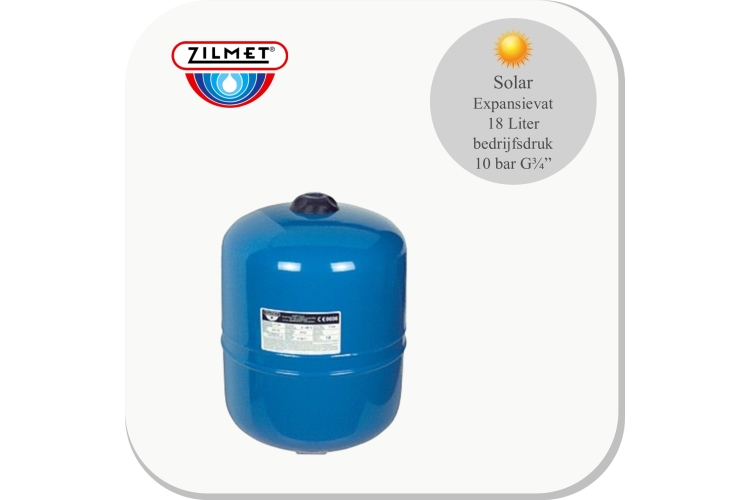

Zilmet Solar expansion vessel 18L G 3/4"
Zilmet Solar expansion vessel 18L G 3/4"
251 100 1001Zilmet Solar expansion vessel 18L G 3/4" for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
- Zilmet® Brand:
- Zilmet Solar expansievaten Category:
- Stock:
Buy this product?
Do you want to order this product? Please create an account.
Cost overview
-
€ 72,60Article
€
Shipping costs
€
Total incl. shipping costs Zilmet Solar expansion vessel 18L G 3/4"
Zilmet Solar expansion vessel 18L G 3/4"
Zilmet Solar expansion vessel 18L G 3/4" for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
Zilmet solar expansion vessel
This solar expansion vessel is designed for closed solar thermal installations. It absorbs the expansion of the solar fluid and supports safe operation when temperatures in the collector field fluctuate.
Key benefits
- For closed solar thermal systems
- Suitable for glycol-based solar medium
- Designed for high system temperatures
- Reliable membrane construction
Specifications
| Technical specifications — Zilmet Solar expansion vessel 18L G 3/4" | |
| General | |
| Product Type | Zilmet solar expansion vessel |
| Article Number | 251 100 1001 |
| Volume | 18 L |
| Diameter | Ø 270 mm |
| Connection | G 3/4" |
| Max. Operating Pressure | 10 bar |
| Pre-Charge Pressure | 2,5 bar |
| Max. System Temperature | -10°C - 120°C |
| Max. Continuous Membrane Temperature | 100°C |
| Solar Medium | suitable up to 70% |
| Construction | Fully welded construction |
| Standards | Pressure Equipment Directive 97/23/EC, DIN EN 13831 |
| Application Standard | DIN EN 12976, EN 12977 / DIN 4757 |
