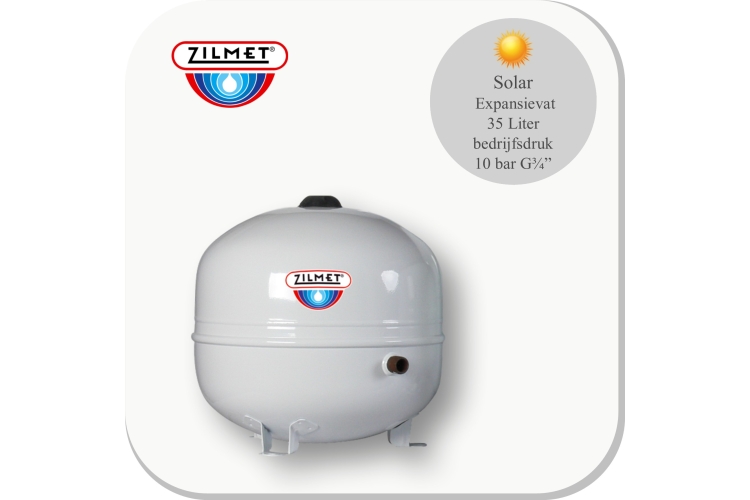

Zilmet Solar Plus expansion vessel 35L G 3/4"
Zilmet Solar Plus expansion vessel 35L G 3/4"
251 400 1007Zilmet Solar Plus expansion vessel 35L G 3/4" for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
- Zilmet® Solar plus Brand:
- Zilmet Solar expansievaten Category:
- Stock:
Buy this product?
Do you want to order this product? Please create an account.
Cost overview
-
€ 118,95Article
€
Shipping costs
€
Total incl. shipping costs Zilmet Solar Plus expansion vessel 35L G 3/4"
Zilmet Solar Plus expansion vessel 35L G 3/4"
Zilmet Solar Plus expansion vessel 35L G 3/4" for closed solar thermal systems, suitable for glycol-based solar fluid and high system temperatures.
Zilmet solar expansion vessel
This solar expansion vessel is designed for closed solar thermal installations. It absorbs the expansion of the solar fluid and supports safe operation when temperatures in the collector field fluctuate.
Key benefits
- For closed solar thermal systems
- Suitable for glycol-based solar medium
- Designed for high system temperatures
- Reliable membrane construction
Specifications
| Technical specifications — Zilmet Solar Plus expansion vessel 35L G 3/4" | |
| General | |
| Product Type | Zilmet solar expansion vessel |
| Article Number | 251 400 1007 |
| Volume | 35 L |
| Diameter | Ø 380 mm |
| Height | 400 mm |
| Connection | G 3/4" |
| Max. Operating Pressure | 10 bar |
| Membrane | Zilan HT |
| Pre-Charge Pressure | 2,5 bar |
| Max. System Temperature | -10°C - 120°C |
| Max. Continuous Membrane Temperature | 100°C |
| Solar Medium | suitable up to 70% |
| Construction | Fully welded construction |
| Standards | Pressure Equipment Directive 97/23/EC, DIN EN 13831 |
| Application Standard | DIN EN 12976, EN 12977 / DIN 4757 |
